Excitech EMD-1230D Versatile CNC Work Center

Versatile Manufacturing Capabilities with Excitech EMD-1230D

Specializing strictly in panel breakdown or flat nesting limits the agile capacity of modern architectural joinery and cabinetry factories. Producers are frequently required to manufacture interior residential doors, handle hardware lock-case mortises, cut acoustic perforations, profile solid wood rails, and execute panel nesting from a single machining cell. The Excitech EMD-1230D Versatile CNC Work Center is purpose-engineered to bridge the gap between flat-table nesting and complex architectural door/panel processing.

Featuring a 1200 × 3000 mm processing envelope, the EMD-1230D handles oversized architectural panel formats and full-scale 3-meter doors. Built on a stress-relieved steel gantry structure, it delivers the structural damping necessary for clean chip evacuation and chatter-free edge finishes across solid timber, compact laminates, composite polymers, and melamine-faced MDF.

Dual-Function Spindle Architecture & Integrated Drilling Block

The machining head assembly of the EMD-1230D combines high-torque contouring with high-speed repetitive hole boring:

1. Heavy-Duty ATC Electro-Spindle:The primary routing operations are powered by an industrial-grade electro-spindle running standard ISO30 or HSK tool holders. Designed for high torque at lower frequency ranges, this spindle performs heavy-pass deep mortising, contour carving, and fast perimeter nesting cuts without thermal degradation or RPM drop under continuous load.

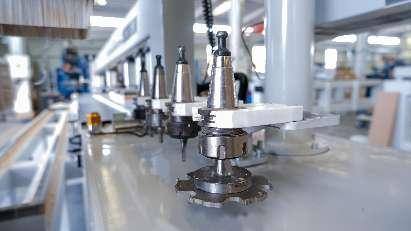

2. Rapid Automated Tool Changer (ATC):Equipped with a multi-station tool carousel mounted close to the spindle assembly (or positioned linearly along the machine frame), the machine performs tool changes in mere seconds. From roughing hoggers to delicate engraving bits and form profile cutters, tools swap automatically without operator intervention.
3. Dedicated Multi-Spindle Boring Array:To prevent wear on the main spindle bearings during continuous vertical hole drilling, an independent drilling block is mounted beside the spindle. It features individual pneumatic drop spindles arranged in an optimal grid, executing mounting holes, cam-pin patterns, and line-boring sequences in a fraction of conventional cycle times.

Heavy-Duty Mechanical Kinematics and Rigid Frame Construction

The EMD-1230D maintains long-term geometric repeatability under continuous two-shift production environments:

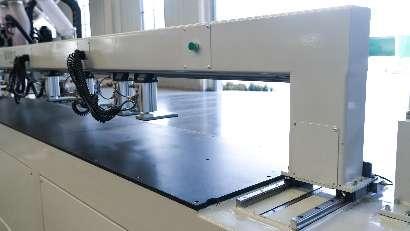

• Thermally Stabilized Steel Gantry: The bed and travelling gantry are welded from heavy structural tubular steel sections, normalized in high-temperature ovens to eliminate residual internal stresses, and precision-faced in a single setup on multi-axis CNC gantry milling machines.
• Ground Helical Racks & Zero-Backlash Transmissions: Motion across the X and Y axes is transferred via hardened, precision-ground helical rack-and-pinion drivetrains coupled with high-efficiency planetary gearboxes. The Z-axis relies on a preloaded recirculating ball screw to deliver exact depth positioning.
• Dynamic Industrial Servo Drives: High-resolution brushless AC servo motors provide rapid kinetic acceleration and deceleration, preventing corner washouts and trajectory lag during high-speed vector interpolation.

Multi-Zone High-Performance Phenolic Vacuum Bed

Workpiece holding rigidity is paramount when machining heavy architectural doors or small nested panels:

• Heavy-Duty Phenolic Matrix Bed: The table is constructed from wear-resistant, high-density phenolic material cut with an interlocking square matrix grid. Closed-cell EPDM gasket cords can be positioned within the grooves to isolate custom vacuum zones matching specific workpiece dimensions.
• Multi-Zone Vacuum Distribution: The manifold system allows operators to channel the full holding tonnage of the vacuum pump to isolated bed zones. This eliminates vacuum leaks through open zones when processing narrow door frames or custom casework parts.
• High-Flow Industrial Vacuum Generation: Supported by high-flow rotary claw or rotary vane pumps (such as Becker or industrial equivalents), the holding platform resists high lateral tool forces, eliminating workpiece shifting during heavy mortising cuts.

Advanced Controller Integration and Architectural Software Compatibility

The EMD-1230D is built to integrate with modern CAD/CAM software solutions for cabinetry, joinery, and interior door production:

• Industrial Open-Architecture CNC Control: A modern industrial CNC controller executes high-speed look-ahead algorithms, optimizing tool paths around complex contours and transitions to ensure uniform surface quality.
• Door Hardware Processing Ready: With generous Z-axis clearance and compatibility with right-angle aggregate heads, the machine executes deep lock cases, faceplate rebates, and handle boreholes quickly and cleanly.
• Automatic Tool Calibration Probe: An integrated tool-setter measures cutter length and diameter offsets automatically, updating the CNC control parameters to eliminate setup errors, workpiece gouging, or spoilboard damage.

Technical Specifications Summary

Engineering Specification	Value / Technical Rating
Machine Model	Excitech EMD-1230D
Working Envelope (X × Y)	1200 × 3000 mm
Z-Axis Clearance / Stroke	200 mm – 300 mm (Clearance under bridge)
Main Spindle Technology	Industrial High-Frequency ATC Electro-Spindle
Tool Changing System	Multi-Position Automatic Tool Changer (Carousel / Linear)
Boring Block Configuration	Multi-Spindle Vertical & Horizontal Boring Array
Axis Drive Architecture	Precision Helical Rack & Pinion (X/Y), Preloaded Ball Screw (Z)
Worktable Surface	Multi-Zone Interlocking Phenolic Vacuum Bed
Lubrication Infrastructure	Central Automated Lubrication System
Quotation Benchmark	USD 21,000 (FOB Nansha)

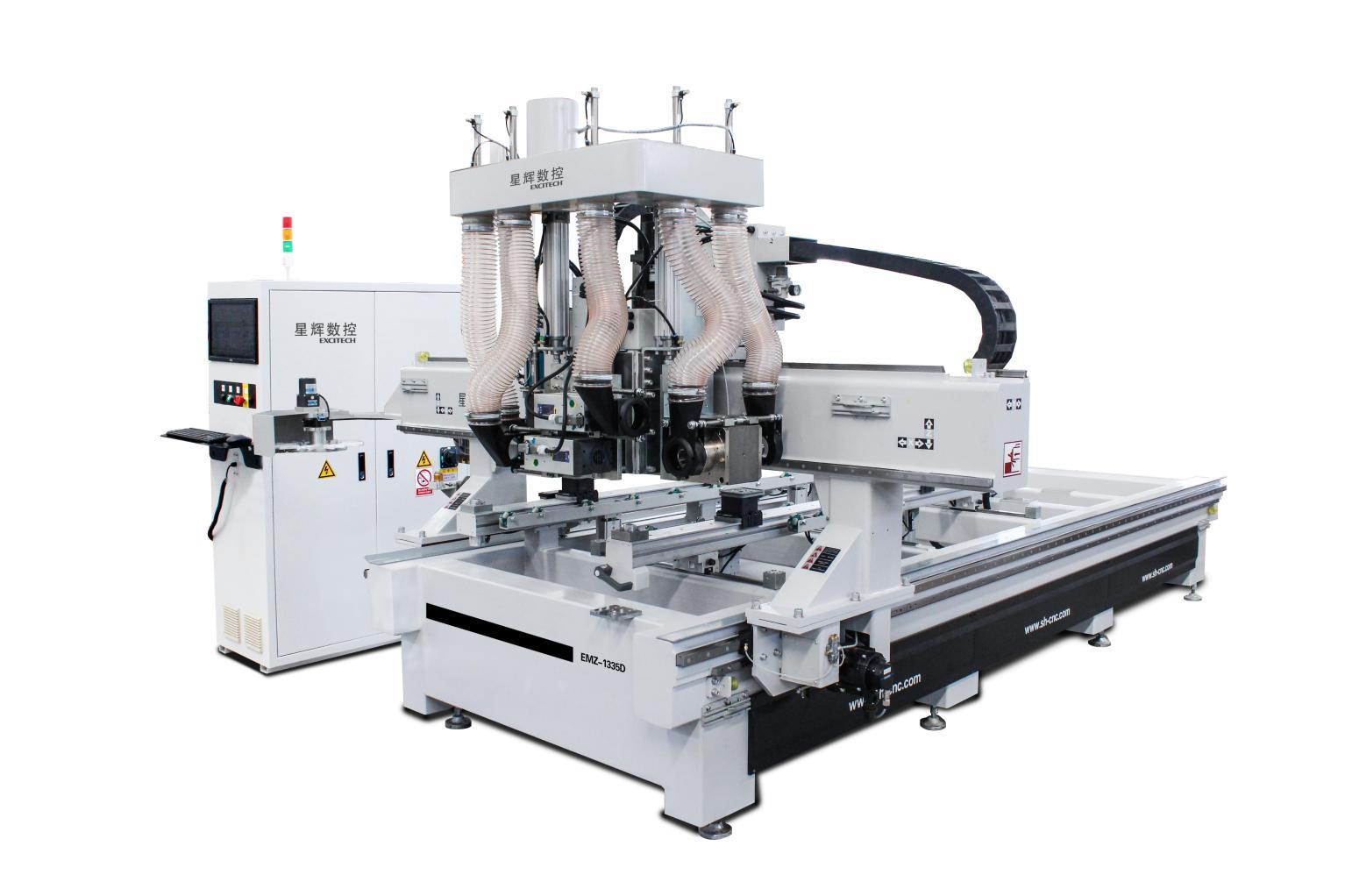

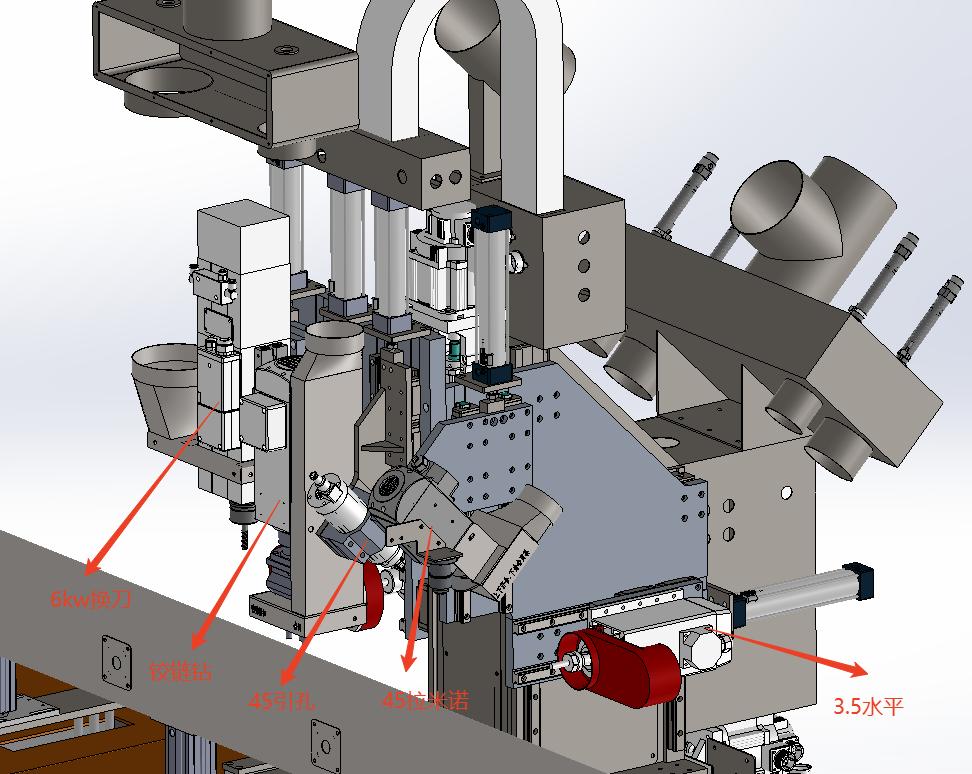

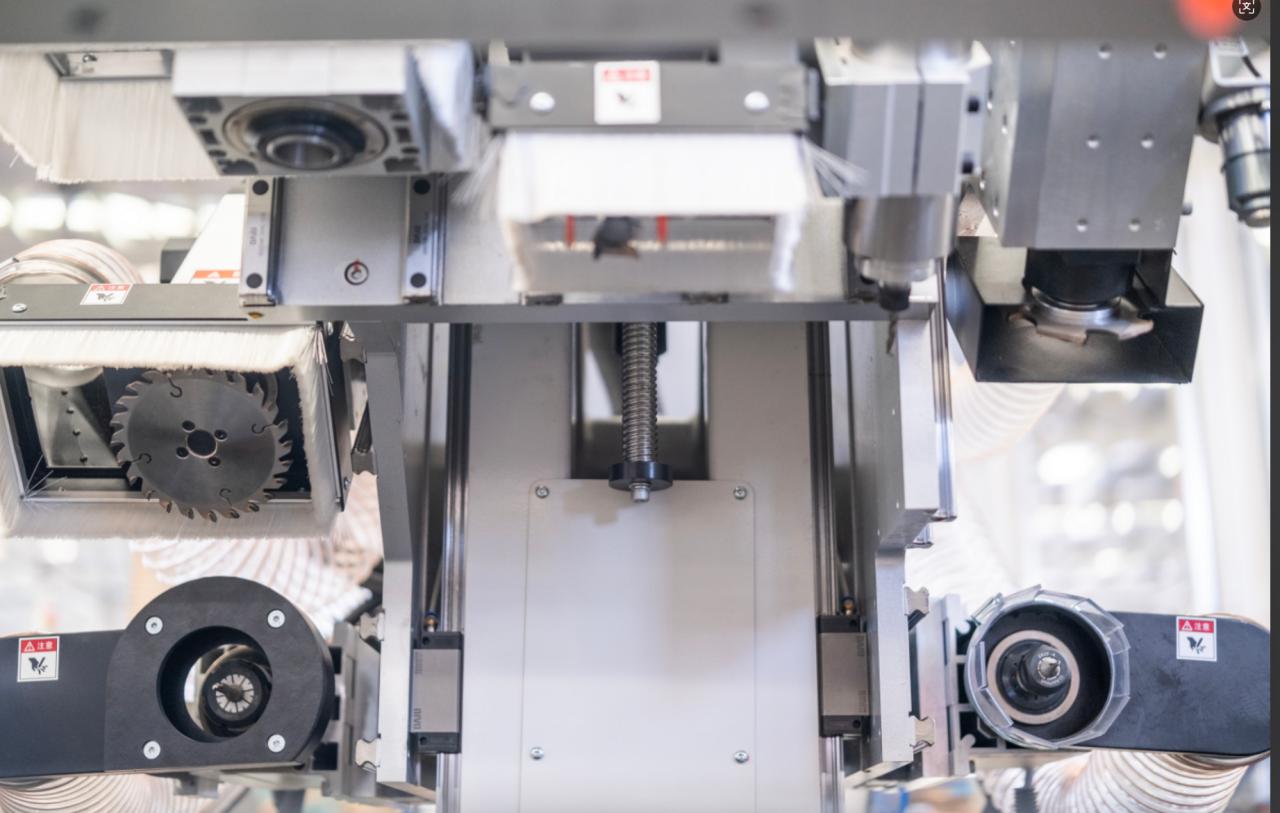

	1*6.0KW ATC Spindle+8-slots Linear type ATC 1*5.5KW Horizontal Grooving Spindle 1*3.5KW Horizontal Drilling Spindle 1*3.5kw 45 degree bevel cutting spindle 1*0.75kw 45 degree lamello saw blade 1*0.6kw Pilot drilling spindle 1*1.5KW hinge hole spindle

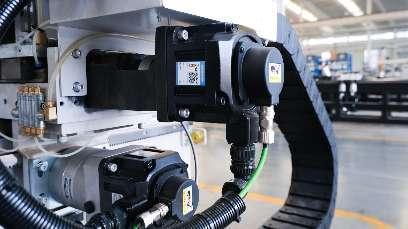

	X、Y、Z axis, all use 1kw Weihong servo motors, with high precision, high speed, anti-overload, stable operation at low speed and low noise
	Automatic tool change 8 tool magazine,can be equipped with a variety of different milling tools, simple and fast,through different tools to achieve different processes.

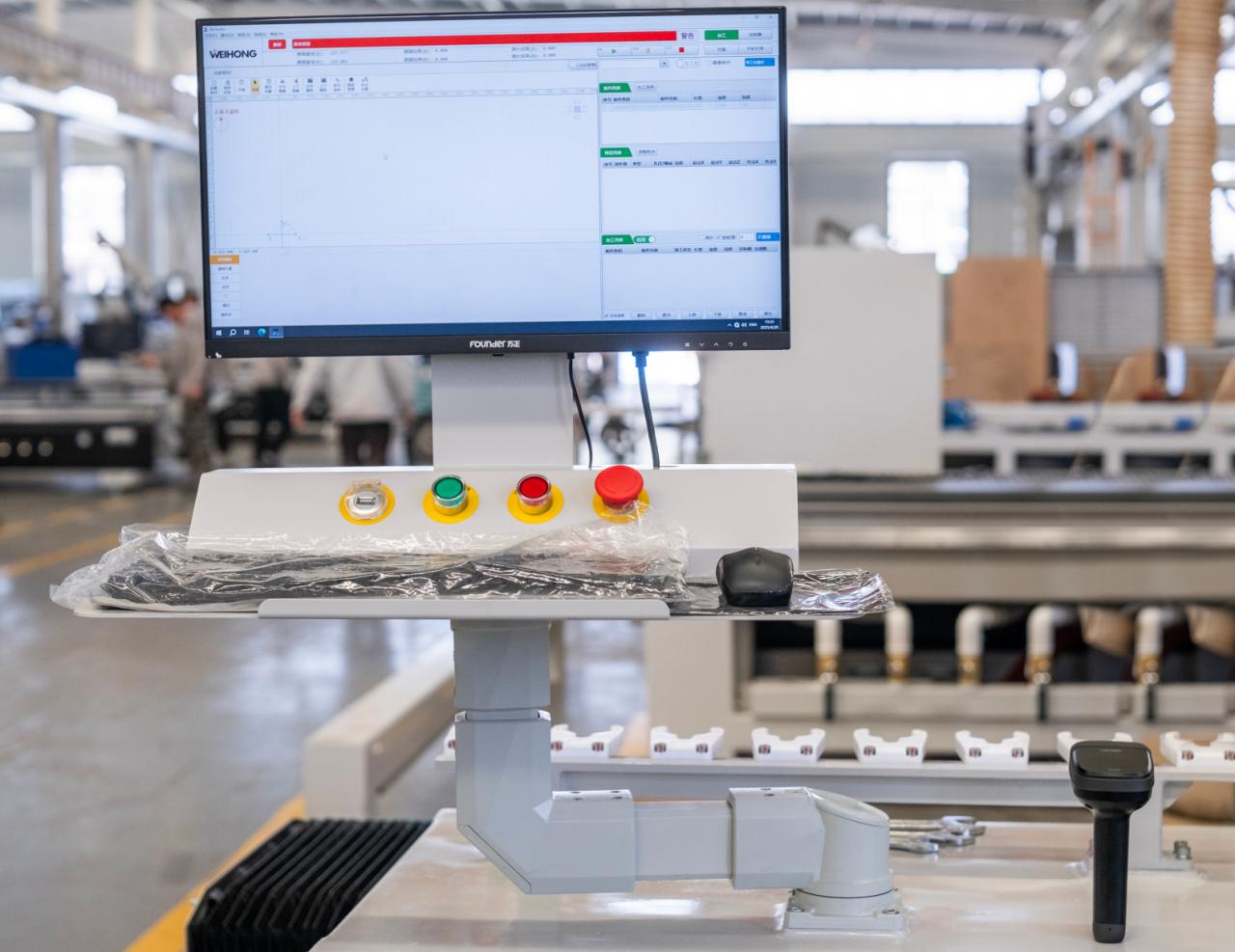

	Weihong system,operate simple and easier

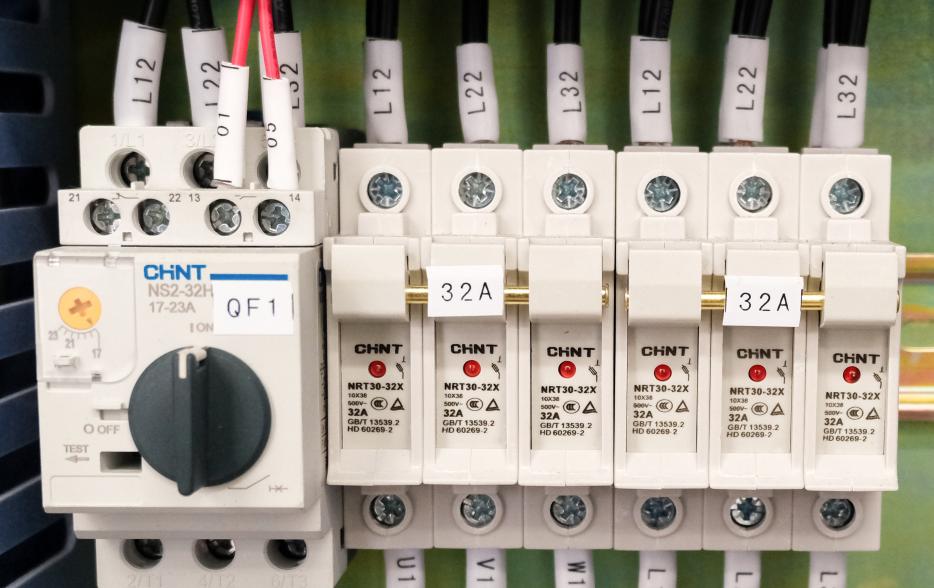

	With Chinese top brand electrical components to keep the stable running.

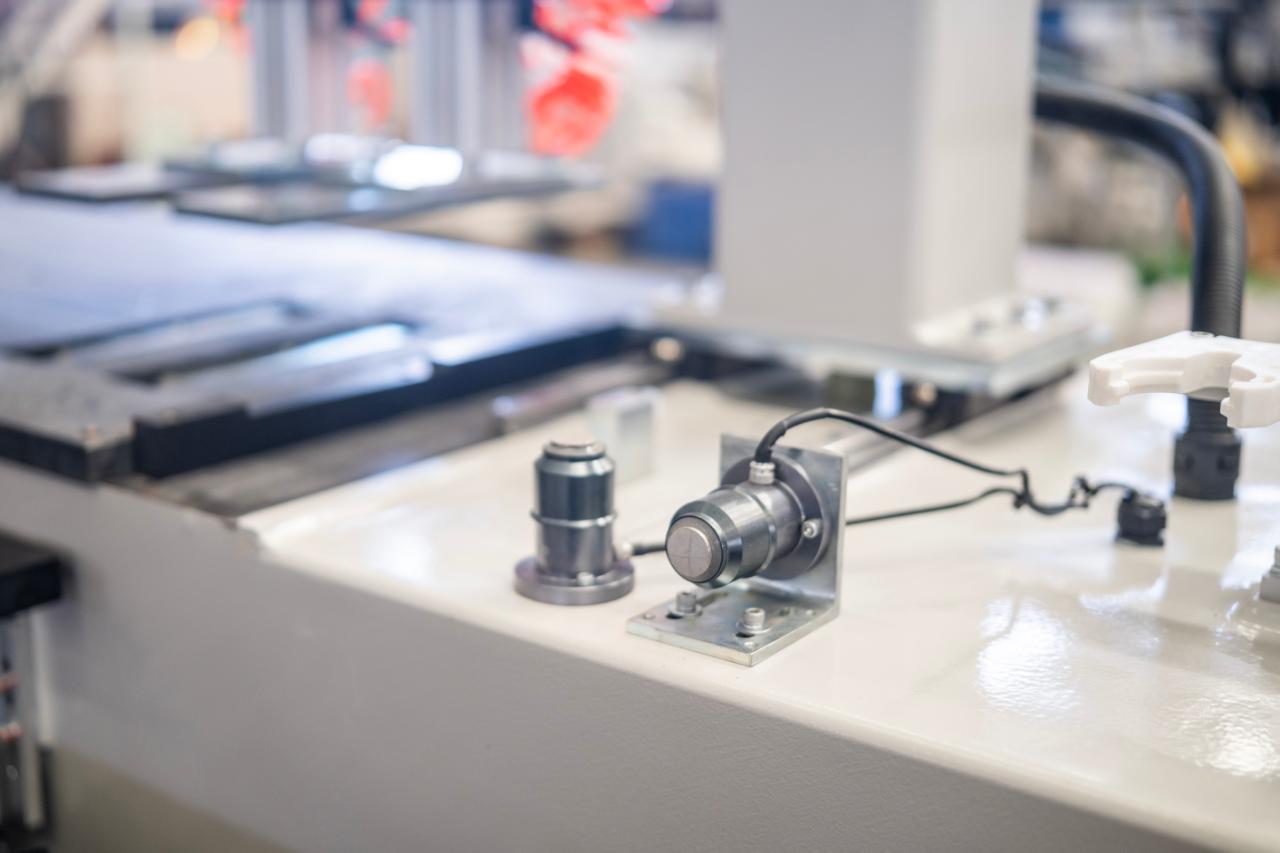

	With auto tool calibration sensor to realize the tool calibrate accurately

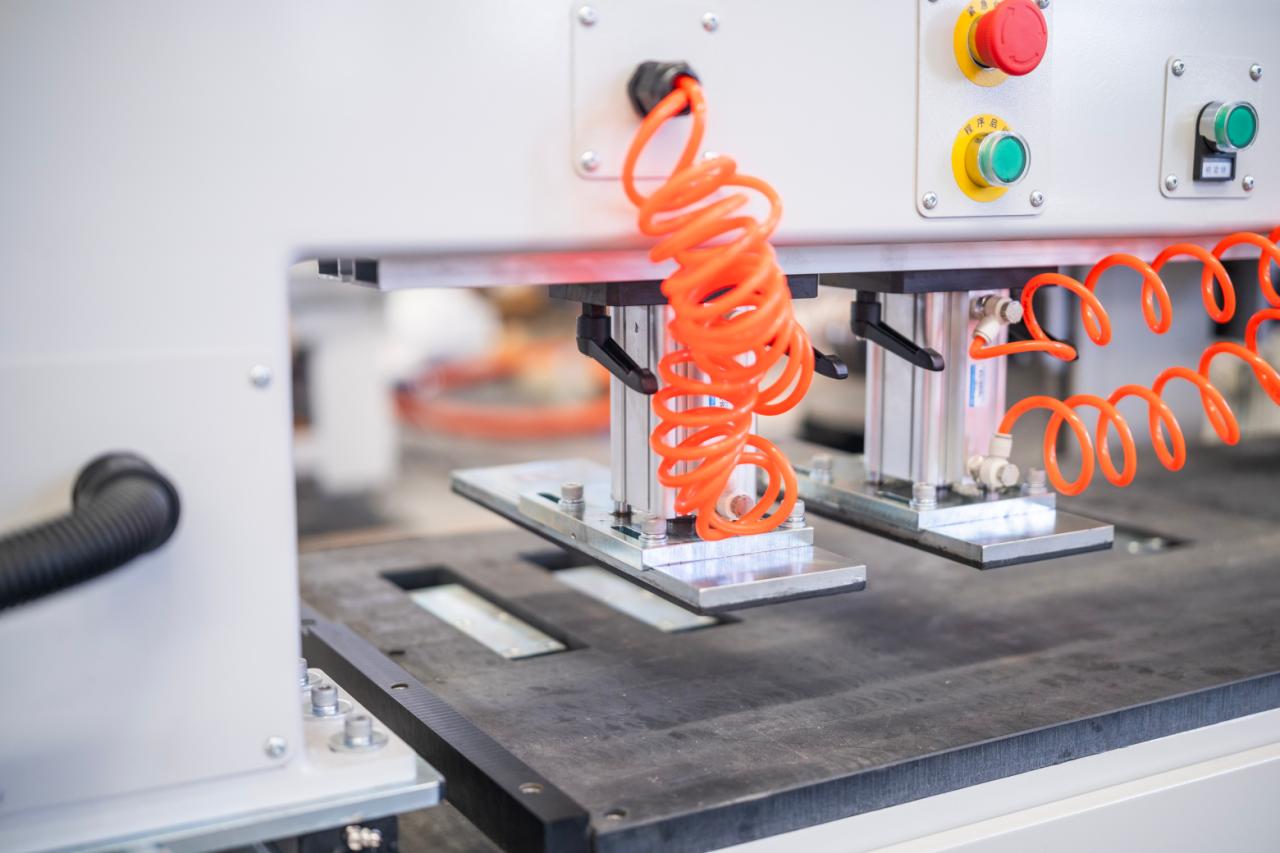

	Chinese cylinders:used to press the panels
	Thickened plastic vacuum table, higher hardness, not easy to deform.

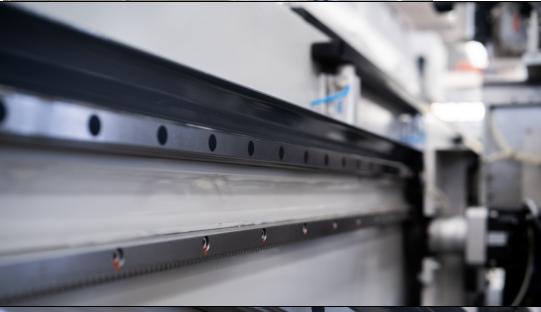

	High-rigidity guide rails and high load-bearing capacity ensure smoother operation at high speeds and high precision, low noise, and long service life.

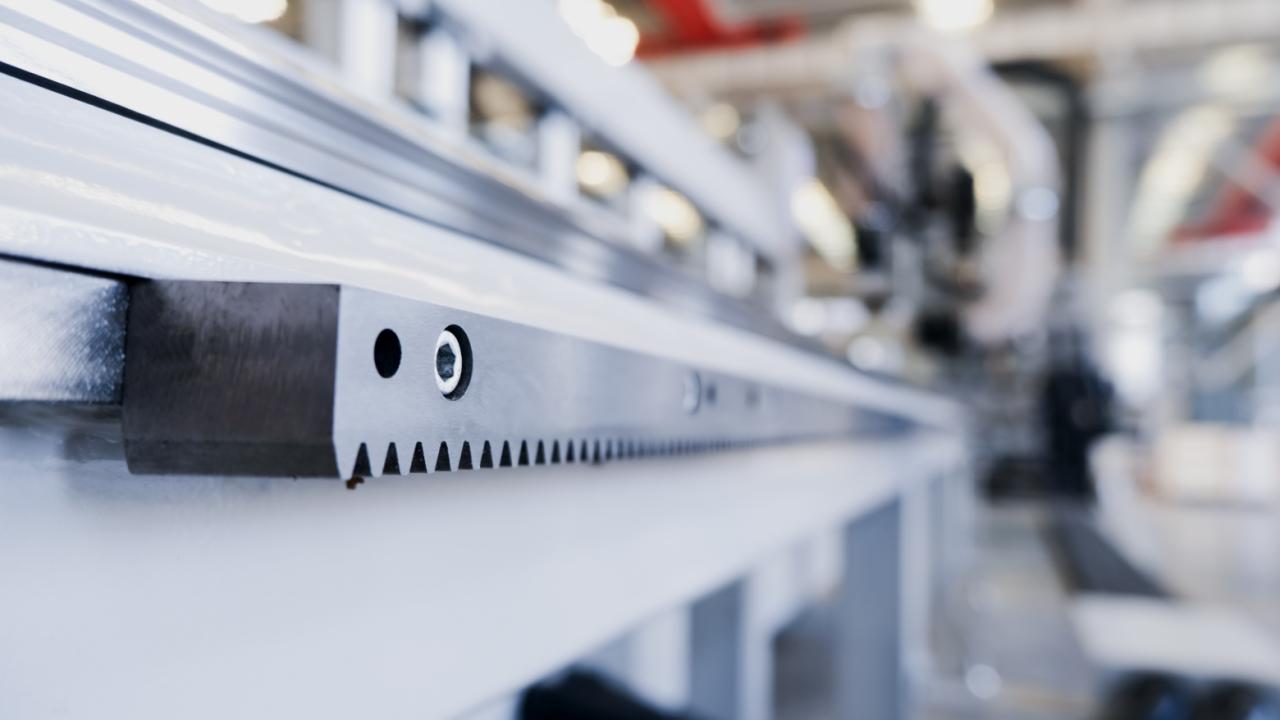

	Alloy structural steel rack, ultra-high strength and toughness,high impact resistance, high wear resistance,100% gear and rack meshing, more stable operation.
