Excitech EPD430 Twin Pusher Industrial Beam Saw

High-Throughput Panel Sizing with Excitech EPD430

In contemporary furniture manufacturing, sheet optimization and cutting cycle speed are direct drivers of operational margins. Standard single-pusher horizontal beam saws suffer from mechanical idle time: whenever cross-cuts and rip-cuts are combined within a nesting layout, trailing parts remain stationary until the current cycle concludes. The Excitech EPD430 Twin Pusher Panel Saw resolves this bottleneck through an engineered dual-axis servo-pusher architecture mounted on an ultra-rigid steel platform.

With an expansive 4300 mm cutting capacity and a 110 mm maximum book height (saw blade projection), the EPD430 processes multi-layered books of MDF, particleboard, plywood, and laminated composite panels with strict dimensional accuracy. By enabling synchronized, staggered feeding across two distinct pushing axes, the EPD430 pushes raw sheet utilization up to 95% while slashing overall cycle times by up to 40% compared to traditional single-pusher saws.

The Mechanics of Twin Pusher Synchronization

The defining technical advantage of the EPD430 is the structural separation of its rear pusher carriage into two independent servo-driven units:

1. Simultaneous Asynchronous Feeding: While the primary clamp assembly positions a wide rip-cut strip into the saw line for cross-cutting, the secondary independent pusher shifts narrow offcuts into position for simultaneous or subsequent cuts without pausing the carriage.
2. Elimination of Saw Carriage Dwell: Saw carriage travel is continuous. The carriage does not linger waiting for manual part re-orientation; the split clamps stage panels along the cutline ahead of blade return.
3. Seamless Nesting Software Integration: Cut patterns generated in enterprise optimization engines (such as Cut Rite or Ardis) are automatically decomposed into dual-pusher kinematic steps, balancing the load across both servo axes without operator reprogramming.

Heavy-Duty Bed Architecture and High-Speed Carriage Dynamics

Long-term dimensional precision in high-output plants depends on bed stability and drive rigidity. The foundation of the EPD430 consists of heavy tubular structural steel that has undergone thermal stress relief and precision surface machining on multi-axis CNC gantry mills.

• High-Velocity Carriage Motion: The saw carriage reaches forward cutting speeds up to 100 m/min and high-speed return rates of 120 m/min. Motion is transferred through helical rack-and-pinion drives riding on precision prismatic linear bearings, eliminating backlash and operational vibration.
• Robust 18.5 kW Main Drive: The 18.5 kW main motor drives a Ø450 mm diamond-tipped saw blade. This high-torque drivetrain effortlessly powers through dense composite books up to 110 mm thick without blade deflection or RPM loss.
• Chip-Free 2.2 kW Scoring Unit: A dedicated 2.2 kW motor powers a counter-rotating Ø200 mm scoring blade. The scoring unit cuts a clean kerf through the bottom melamine or paper veneer immediately prior to the main blade pass, eliminating micro-chipping on delicate surfaces. Electronic blade alignment is adjusted directly from the operator terminal.

Advanced Workpiece Handling and Panel Clamping Systems

Material stability is maintained through an array of 2+11 heavy-duty dual-stage pneumatic clamps. These clamps feature variable pressure sequencing: gentle clamping for thin, fragile panels, and maximum clamping tonnage for thick, heavy stacks:

• Heavy-Duty Air-Flotation Tables: Front loading stations utilize high-volume air blowers that generate a continuous air cushion beneath the boards. This enables operators to effortlessly rotate heavy stacks weighing dozens of kilograms while preventing abrasive scratches on high-gloss or textured laminates.
• Pneumatic Side Pressure Device: An automated side-aligner roller registers panels against the square fence prior to every cut sequence, securing absolute perpendicularity and eliminating diagonal drift across long 4300 mm cuts.

Smart Factory Automation & Control Features

The EPD430 is controlled via an industrial PC interface running on a standard Windows environment, supported by a dedicated high-speed PLC:

• 3D Cutting Simulation: The operator terminal renders real-time 3D animations of the panel flow, showing turning instructions and cut orders clearly to the machine operator.
• Barcode & Tracking Labeling: The system interfaces directly with industrial barcode label printers. Labels printed at the discharge fence contain part numbers, edgebanding assignments, and downstream CNC machining routing codes.
• Automatic Centralized Lubrication: A programmable timer-controlled lubrication pump feeds metered oil amounts to all linear ways, bearing blocks, and racks, ensuring minimal mechanical wear and reduced maintenance overhead.

Technical Specifications Summary

Engineering Specification	Value / Technical Rating
Machine Model	Excitech EPD430
Max. Cutting Length	4300 mm
Max. Cutting Thickness (Book Height)	110 mm
Main Saw Motor / Blade Spec	18.5 kW / Ø450 mm
Scoring Saw Motor / Blade Spec	2.2 kW / Ø200 mm
Saw Carriage Speed (Forward/Return)	100 / 120 m/min
Pusher Positioning Speed	85 m/min (Rear-feed: 60 m/min)
Clamp Configuration	2 + 11 Independent Dual-Axis Clamps
Support Bed	High-pressure air-flotation tables
Lubrication Infrastructure	Programmable automated oil lubrication
Quotation Benchmark	USD 40,800 (FOB Nansha)

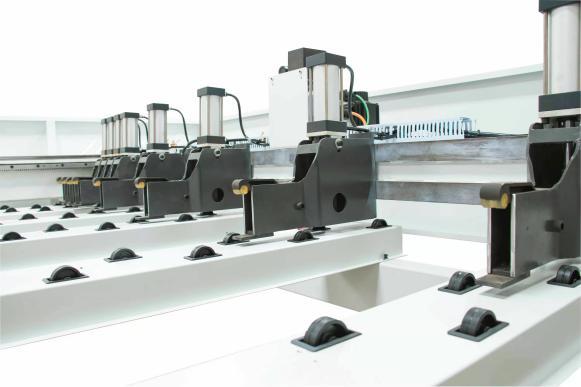

	Equipped with 2+ 11 clamps (Twin pusher) The double pusher device enables simultaneous cross cutting or cross & longitudinal cutting of two workpieces, effectively improving sawing efficiency.

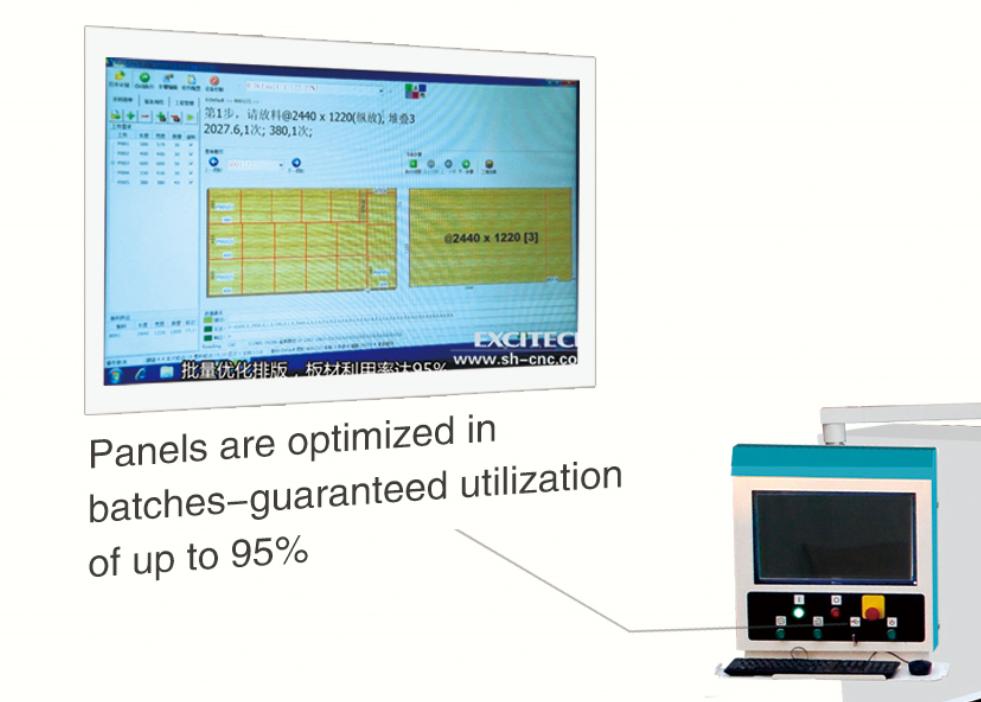

	Optimizer: Panels are optimized in batches-guranteed ultilization of up to 95%

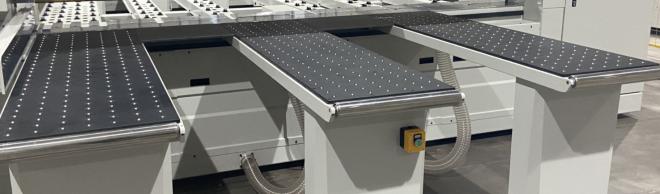

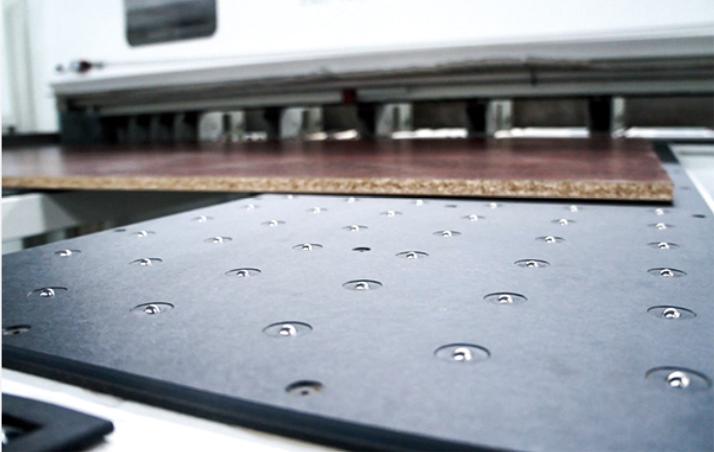

	Air table reduces the friction to the minimum to prevent chipping andwearing of the materials.

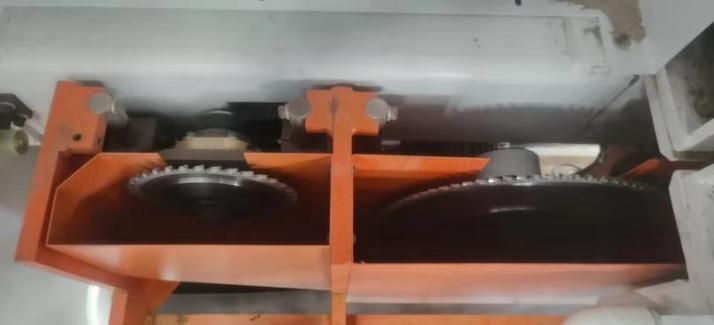

	The large and small saws are independently started and vertically lifted. Adopting precision circular guide rails. Electric lifting scoring saw Easy to change the saw blade.
	The precise and powerful movementof the servo driven saw carriage, along with the 18.5kW main saw motor guarantee a clean finish even whencutting multiple panels.

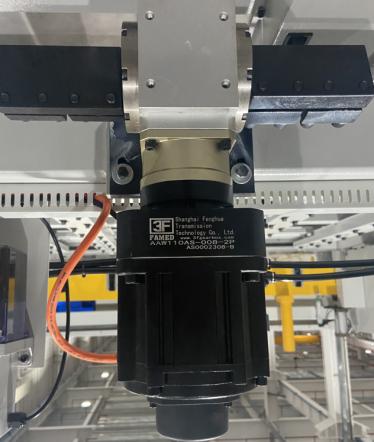

	Servo motor transmission uses grinding grade gear and rack imported from Taiwan. Features: high hardness, high accuracy, wear resistance, long-term guaranteed accuracy
	Imported high-precision reducer

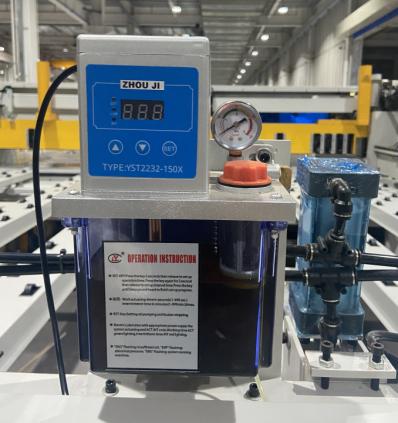

	Automatic oil lubrication system
	Guide rail: Use high-precision Taiwan circular guide rails for parallel double suspension ensuring its stability, durability, wear resistance, and longterm sawing accuracy without deformation
	Structure Main saw motor 18.5kw Grooving saw motor 2.2KW
	With Inovance Servo,Inovance PLC, Schneider electrical contactor , ensuring long life span

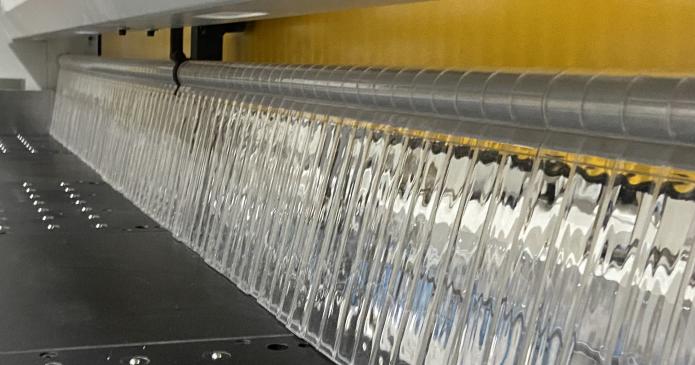

	Manual pull wire emergency stop device is adopted at the feed inlet.Ensure personnel safety.
	With servo side alignment to realize the accurate positioning.
	label printer for manually labeling
	Industrial control screen with Philips brand ,high quality and tidy design
	Tidy electrical cabinet CE standard and layout
	Servo motor control for grooving function

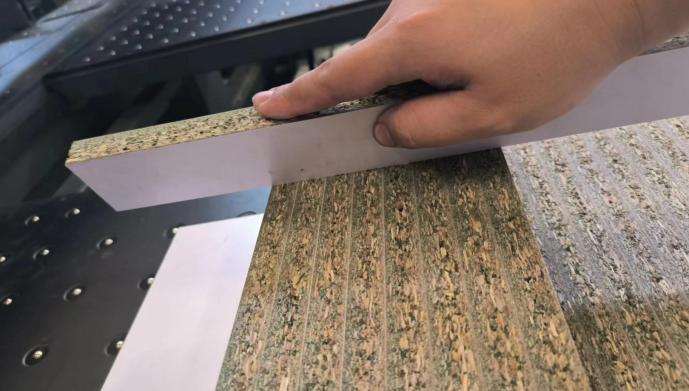

	Cutting samples perfect effect
