Excitech EF666X Straight and Bevel Edgebander

Sequential Workstation Architecture (17 Distinct Stages)

The EF666X features seventeen inline workstations engineered for uninterrupted processing:

1. Release Agent Spraying: Anti-adhesive agent sprayed onto upper and lower board margins prevents glue adhesion to decorative surfaces.
2. Panel Beveling Unit: High-power angular milling head cuts the primary chamfer/slope along the panel edge.
3. High-Speed Pre-Milling Unit: Diamond milling spindles remove micro-roughness on the cut face for seamless edge contact.
4. Slanted Edge Gluing Station: Dedicated hot-melt applicator roller metering glue precisely across the angled face.
5. Straight Edge Bottom Gluing Station: Secondary roller supplying adhesive along the bottom vertical section.
6. Tape Grooving Mechanism: In-line micro-grooving cutter scoring the reverse of the edge tape along the bend line.
7. Straight & Slanted Edge Pressing Group: Multi-roller compound pressure mechanism clamping both the vertical and inclined surfaces.
8. Slanted Edge Fine Trimming: High-frequency motor trimming excess tape overhang along the upper angled edge.
9. Straight Edge Fine Trimming: Fine radius profiling station detailing the bottom vertical edge.
10. High-Precision End Trimming: Saws slicing front and trailing tape overruns perpendicular to the feed direction.
11. Two-Motor Corner Rounding Unit: Dual high-speed tracing motors following leading and trailing corners to contour seamless transitions.
12. Straight Edge Scraping Station: Profile radius knives smoothing rotary milling marks on the straight edge.
13. Slanted Bottom Scraping Unit: Radius scraper dedicated to detailing the lower transitional edge.
14. Slanted Upper Flat Scraping: Flat carbide scraper removing micro-beads of adhesive along the upper angled junction.
15. Straight Flat Scraping Station: Traditional surface glue scrapers removing residual glue along the flat board face.
16. Cleaning Fluid Spraying Unit: Detergent spray dissolving surface residue and fine dust ahead of buffing.
17. Oscillating Buffing Station: High-speed cloth buffing wheels restoring original surface gloss and color depth to the finished edge.

Technical Specifications Summary Table

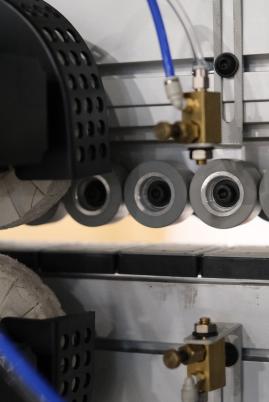

	Spray release agent: This device sprays the separating agent on the upper and lower surfaces of the board. The separating agent remaining on the upper and lower surfaces of the board after pre-milling is used to prevent the glue overflowing from the board from sticking to the upper and lower surfaces of the board.

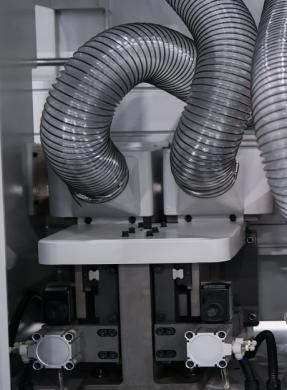

	Pre-milling: 1.Using diamond tools:100*H43*Φ30。 2.Modify the corrugation marks, burrs or non-vertical phenomenon caused by the cutting of the panel saw to achieve better edge sealing effect. It makes the edge strip and the plate fit more closely, and the integrity and aesthetics are better. 3. Efficient vacuuming system can quickly discharge the sawdust.
	Panel beveling: 5.5kw High speed spindle with large cutting tools, easily to bevel the panels.

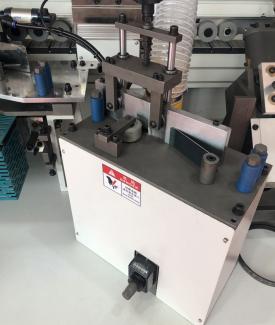

	Slanted edge grooving unit: High speed motor with groove tools, make it easy to groove on the edge, via this method, it will be easy to press the slanted edge.

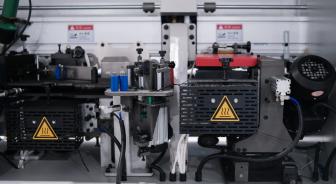

	Straight &Belve gluing unit: Standard bottom gluing unit for straight edge & slanted edge

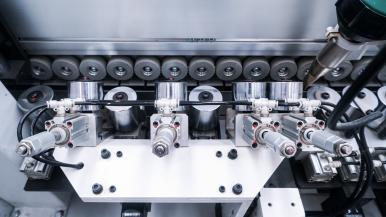

	Pressing (straight& slanted edge): 1. The material pressing mechanism is finished by the pressure roller, and 1 large pressure roller (active wheel) and 8 small pressure rollers (passive wheel, no power). 2. The high-precision large pressing wheel and the rubber-coated wheel operate synchronously to ensure the compacting effect.
	End trimming: 1. Two independent high-frequency motors cut the remaining material at the front and back ends, and each motor has a master device for precise positioning. 2. Through the precise linear guide rail movement, the automatic tracking of the master and the rapid cutting structure of the high-frequency high-speed motor are adopted to ensure that the cut surface is smooth and smooth.
	Fine trimming Manually: One fine trimming(manually) for slanted edge One fine trimming(manually) for straight edge 2 x 0.75 kW, 12,000 rpm
	Corner trimming unit: 1. Two motors corner rounding 2. Each corner can be activated and deactivated individually from the terminal (2 x 0.3 kW motors, 12.000 RPM)
	R scrapping (Manually): No power scraping, remove the tool pattern after trimming, make the arc straight and full. For PVC/ABS edge banding within 3mm with scraping edges.
	Spray clean agent: 1. This device is used to spray the cleaning agent on the upper and lower surfaces of the panel and the edge sealing. By using cleaning agents and the polishing process to remove the glue residue that overflowed during edge banding
	Buffing: The polishing device is used for cleaning and polishing after edge banding.

Product Overview and Industrial Purpose

The Excitech EF666X Heavy-Duty Single-Side Straight and Slanted Edgebanding Machine is an advanced engineering platform developed for premier panel furniture manufacturers specializing in modern, handleless cabinet doors, 45-degree bevel edges, and integrated J-pull profiles. Traditional production of handle-free cabinetry requires secondary milling, separate edge processing, or manual post-edge detailing—processes that introduce dimensional variances and bottle-neck factory flow. The EF666X consolidates high-precision panel beveling, dual-zone glue application, customized edge tape grooving, and multi-axis scraping into a continuous, heavy-duty processing line.

Built upon an elongated 9,900 mm monobloc steel chassis weighing over eight tons, the EF666X operates with an expansive installed power of 40 kW. The machine eliminates complex retooling delays by incorporating an automated single-button switchover system between standard 90-degree straight edgebanding and precision angled/slanted edge processing. In straight edgebanding mode, the machine operates across variable production feed speeds of 14, 16, and 22 m/min on workpiece thicknesses ranging from 10 mm to 60 mm. In slanted/bevel processing mode, it feeds at a stabilized 14 m/min across panel thicknesses of 18 mm to 25 mm, accommodating specialized edge tape widths up to 60 mm and thicknesses between 1.0 mm and 2.0 mm.Advanced Mechanics: Integrated Beveling, Dual Gluing, and Tape Grooving

The specialized architecture of the EF666X resolves the complex physical dynamics of applying edge tape across compound 45-degree angled and vertical profiles simultaneously:

1. Integrated Panel Beveling and Diamond Pre-Milling:

   Before adhesive application, the board passes through a dedicated beveling station that precisely cuts the required angular chamfer into the panel edge. Following the primary angular cut, a high-frequency diamond pre-milling unit dressed with Polycrystalline Diamond (PCD) cutter blocks micro-mills both the vertical lip and the angled face. This dual preparation ensures zero chip-out and leaves an atomically clean substrate for optimal adhesive wetting.

2. Dual-Application Gluing Unit (Slanted & Straight Bottom):

   Adhering tape across an angled profile requires distinct glue spread patterns. The EF666X separates the adhesive application into two distinct zones: an upper angled applicator that coats the slanted chamfer, and a secondary lower roller applying adhesive along the bottom straight register. This independent metering ensures that adhesive film thickness remains uniform across both the vertical base and the inclined face without glue dry-out or excess accumulation at the transition vertex.

3. In-Line Edge Tape Grooving:

   When standard PVC or ABS edgebanding is folded over a sharp internal or external bevel junction, mechanical stress can cause whitening, localized lifting, or micro-cracking. The EF666X integrates an internal Tape Grooving Unit directly ahead of the feed guide. This high-speed scoring blade mills a microscopic relief groove into the back face of the edge tape along the exact bend axis, allowing the band to wrap tightly around the sharp angle without stress fractures or edge pop.

4. Multi-Axis Straight & Slanted Pressure Zone:

   The pressing section features pneumatically controlled lateral and angled rollers working in precise synchronization. The primary driven roller seats the base tape, while an adjustable bank of inclined secondary rollers applies perpendicular clamping force directly against the angled face, ensuring uniform bondline consolidation across both planes.

Industrial Automation and Hardware Specification

Control of the EF666X is orchestrated via an INOVANCE high-performance PLC platform coupled with digital frequency inverters and dedicated servo drives. The operator interface is anchored by an oversized 21.5-inch industrial touch screen computer (IPC), presenting real-time graphical schematics of the machining sequence. Operating recipes for pure 90-degree straight panels or combined bevel panels are saved digitally, allowing line operators to switch modes instantly without manual mechanical re-indexing. Electrical cabinets are isolated and sealed against wood dust, utilizing heavy-duty industrial switchgear, while the pneumatic actuation utilizes high-flow regulators and valves rated for continuous line pressure above 0.8 MPa.
